Shure MXA920W-S Microflex Advance Ceiling Array Microphone White Dante – Used

Shure MXA920W-S Microflex Advance Ceiling Array Microphone (White)

Shure MXA920W-S — the square, 24″ white Microflex Advance ceiling array microphone. A premium networked conferencing microphone with Shure’s Automatic Coverage beamforming, IntelliMix DSP, Dante digital audio and AES67 compatibility, powered over a single Ethernet cable (PoE Class 0).

Tested working, pulled from a working corporate AV installation.

Multiple available, priced each — identical units. Buy one or several.

Highlights

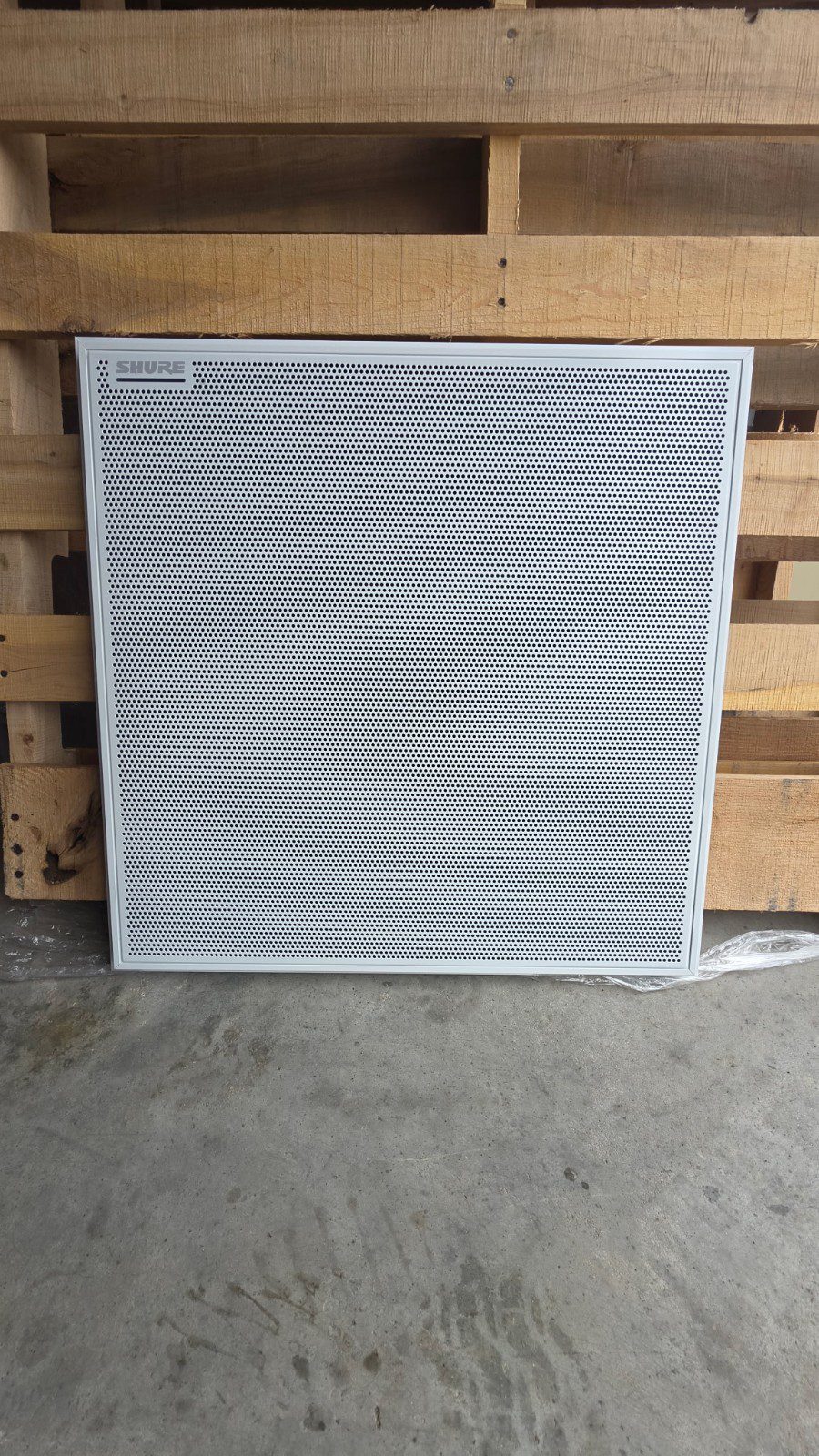

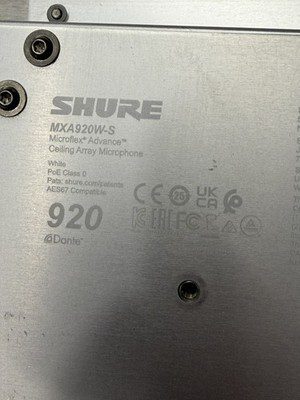

• Square 24″ ceiling array, White (MXA920W-S)
• Automatic Coverage steerable beamforming; onboard IntelliMix DSP
• Dante networked audio + AES67 compatible
• Single-cable PoE Class 0 power + audio (RJ45)

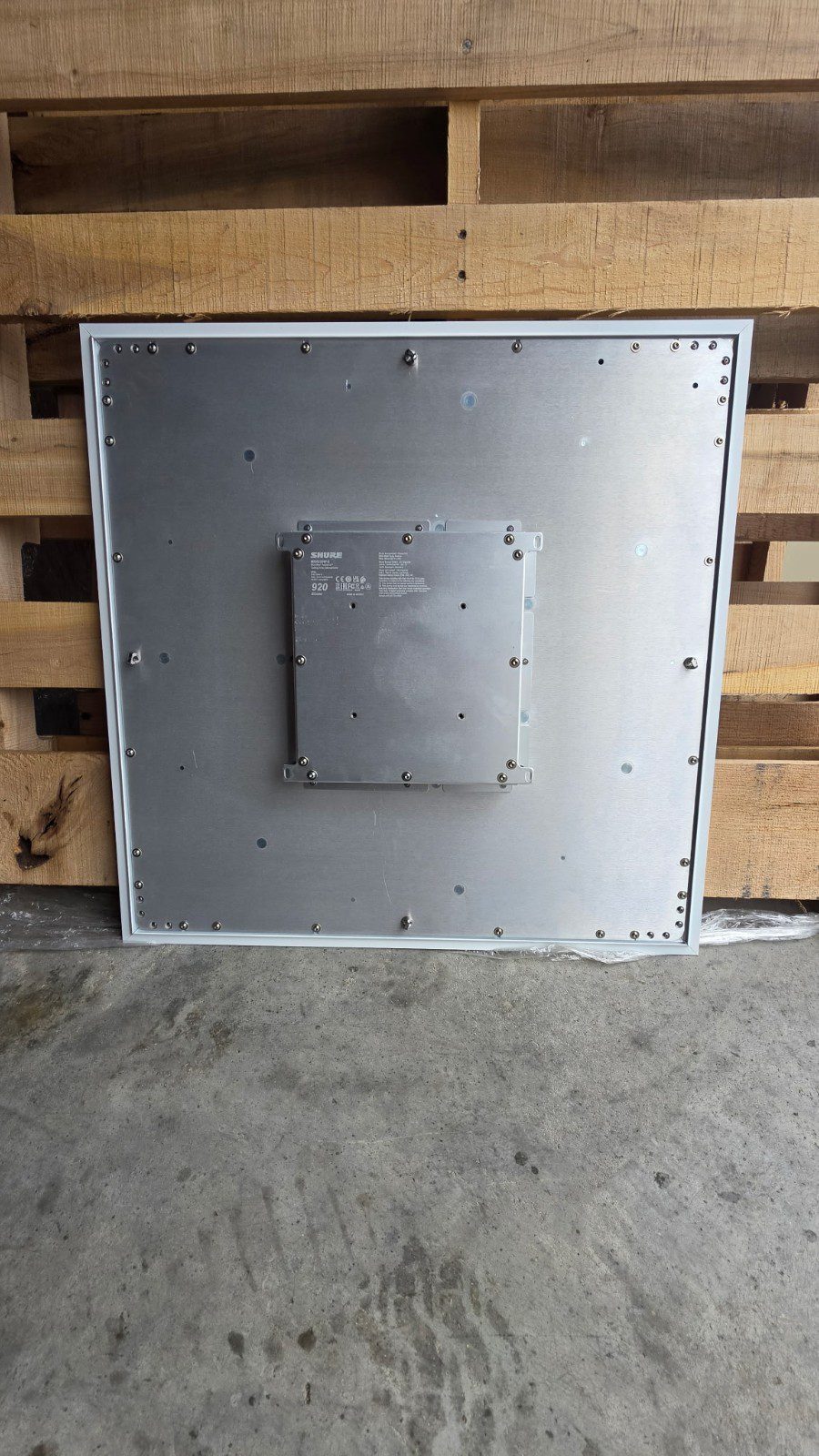

• Ships with its mounting bracket/hardware as pictured

Condition & disclosure (please read)

• Tested working, pulled from a working corporate AV installation.
• Priced per unit — multiple available, each sells separately (identical MXA920W-S units). Buy one or several.
• Recommend a factory reset before use. These may carry a prior Shure Designer device password and/or a Dante Domain Manager (DDM) enrollment. Both are clearable by the new owner — there is no cloud-account lock that survives a reset (Shure gear is managed on-prem via Shure Designer; there is no Crestron-XiO-style server-side claim):
  • Hardware factory reset: the recessed reset button is behind the grille (use a paper clip). Hold 4–8 sec for a network/IP reset, or more than 8 sec for a full factory reset — this clears the device password, all configuration, and network/IP settings back to defaults.
  • Dante domain (only if it still shows domain-locked): in the free Dante Controller, isolate the device on the network, power-cycle it, wait ~2 min, then Device menu → Clear Domain Credentials (Audinate’s “Lonely Reset”).
• What’s included: the microphone + its mounting bracket/hardware as pictured. No PoE injector, no network cables, no power supply (the MXA920 is PoE Class 0 powered — a PoE+ switch or injector is required and is not included).
• All sales final / no returns.

Shipping: calculated-rate parcel within the US, or local pickup in Hewitt, TX.
